current location：Home>Products>Manual Positioners>Rotary Stages

PRS300 series precision rotary stages

    1.High precision cross roller bearing axis allows for smooth motion.

    2.Tangentially driven translation withmicrometer head.

    3.High precision differential reading.

    4.Thin design,large bearing capacity.

  • description
  • parameters

PRS300 series precision rotary stages



1.High precision cross roller bearing axis allows for smooth motion.

2.Tangentially driven translation withmicrometer head.

3.High precision differential reading.

4.Thin design,large bearing capacity.



Related Products：

     COMBINATED STAGES





Model

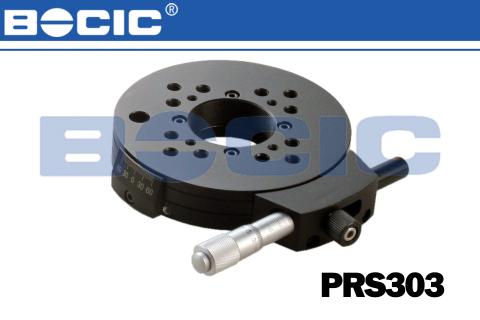

PRS303

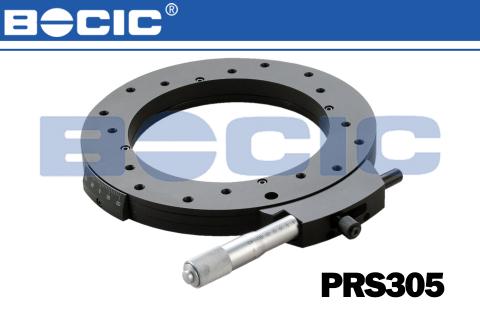

PRS305

Table size（mm）

φ100

φ200

Driving

Micrometer head

Reading

vernier reading

Resolution

4″

1″

Coarse adjustment

360o

Fine adjustment

±5o

Graduation

1o

Minimum reading

5′

Loading capacity(kg)

10

15

Weight（kg）

0. 5

1
