TMS120/TMS220 series multi-axis positioning stages

    1. TMS122M uses cross roller bearing guide which provides better linear translation.TMS222M uses linear ball guide for higher precision. .

    2.Driven withmicrometer head.

    3. Center aperture design

  • description
  • parameters

TMS120/TMS220 series multi-axis positioning stages



1. TMS122M uses cross roller bearing guide which provides better linear translation.TMS222M uses linear ball guide for higher precision. .

2.Driven withmicrometer head.

3. Center aperture design

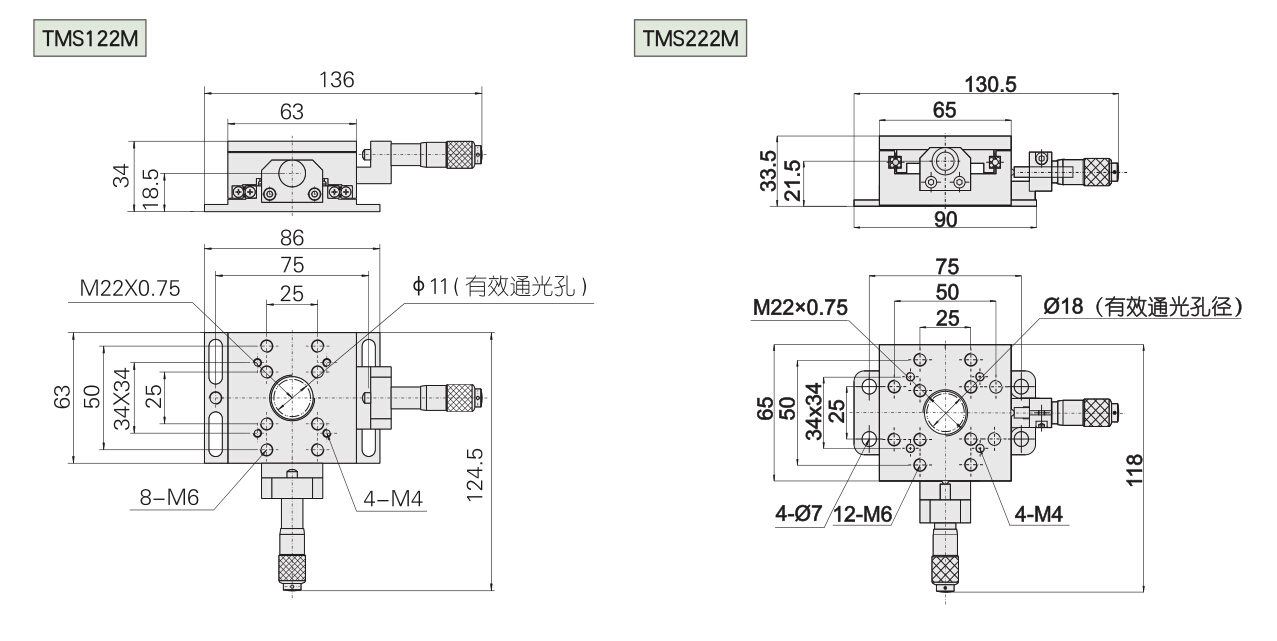

Model

TMS122M

TMS222M

Axles

XY two axles

Travel （mm）

13

Driving

micrometer head

Graduation（mm）

0.01

Resolution（mm）

0.002

Loading capacity (kg)

5

Weight （kg）

0.45

0.5
