current location：Home>Products>Optics Mounts Series>Optics Mounts

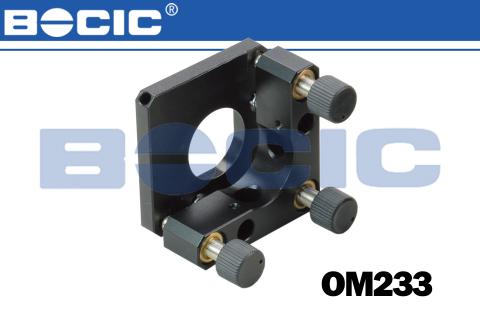

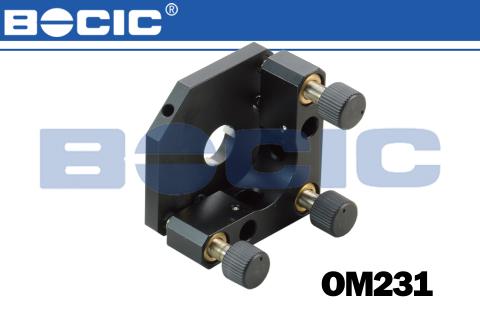

OM230 series mirror mounts

    1. Provides short travel translation adjustment

    2. Two dimensional tilt adjustment

    3. M6×0.25 fine thread screw adjustment

    4. Spring reset

  • description
  • parameters

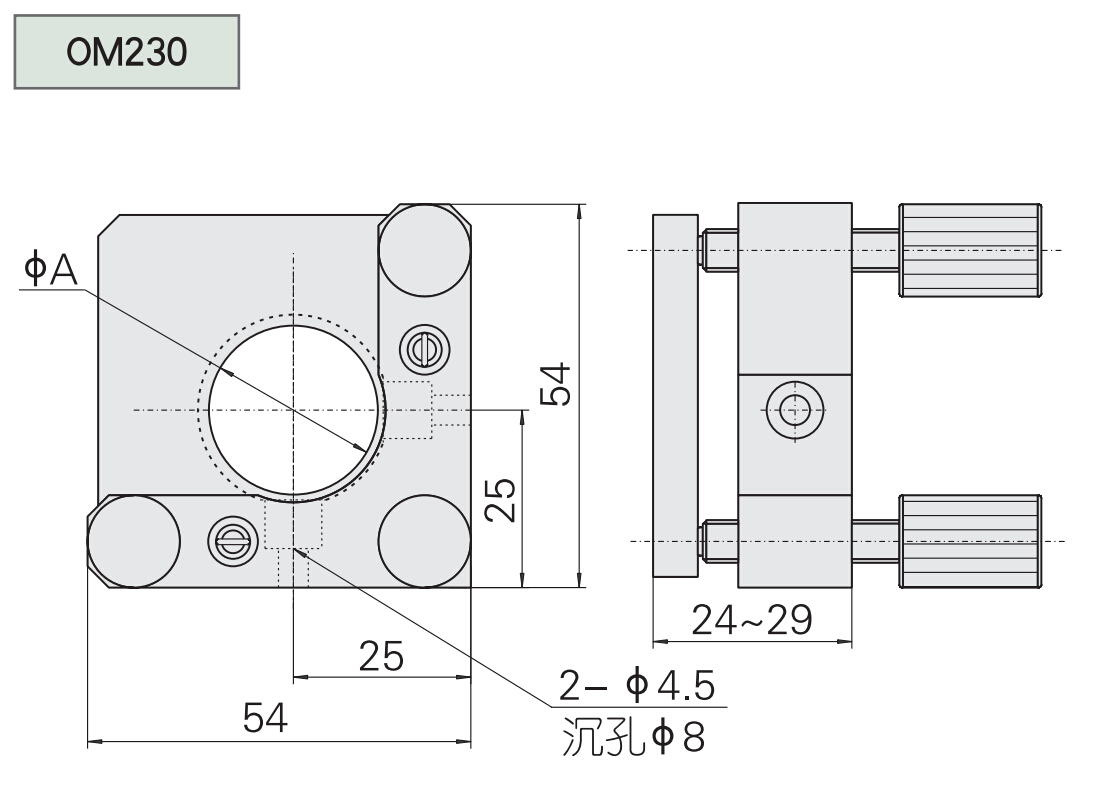

OM230 series mirror mounts




1. Provides short travel translation adjustment

2. Two dimensional tilt adjustment

3. M6×0.25 fine thread screw adjustment

4. Spring reset



Model

OM231

OM232

OM233

OM233B

ΦA Applied diameter

15

20

25

25.4

Weight（kg）

0.12

0.12

0.11

0.11
