current location：Home>Products>Optics Mounts Series>Optics Mounts

OM311 semiconductor laser mounts

    1. Provides four dimensional adjustment

    2. M6×0.25 fine thread screw adjustment

    3. Spring reset

    4. Three claws chuck

  • description
  • parameters

OM311 semiconductor laser mounts




1. Provides four dimensional adjustment

2. M6×0.25 fine thread screw adjustment

3. Spring reset

4. Three claws chuck

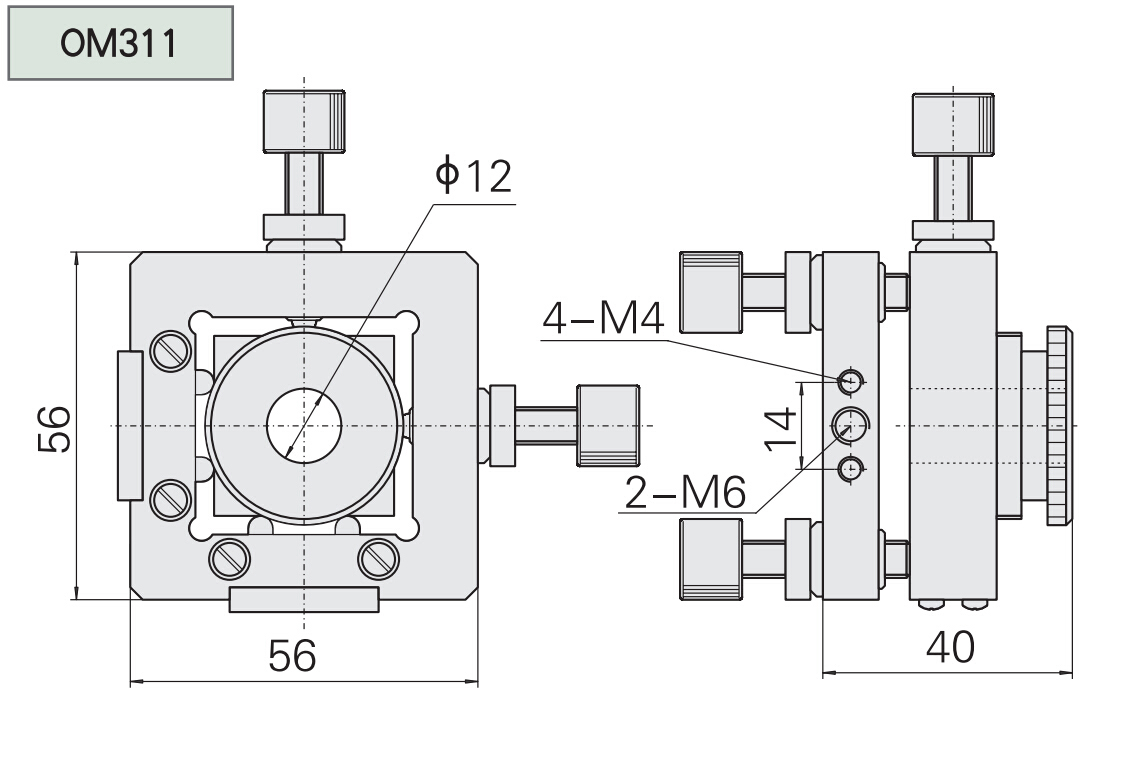

Model

OM311

Applied diameter

Φ12

Adjusting rang of tilt

θy

±5°

θz

±5°

Adjusting range of translation

Tx

±2.5

Ty

±2.5

Weight（kg）

0.3
