VPH100 series vertical adjustment post holders
1. The height of post holder can be adjusted.
2. Had V shape groove in axial , ensures stable locking
3. Support posts and part of height all can locking
4. Had M6 tapped hole in bottom side , easy for fix in table
5. Used with diameter 12mm SP series support posts together
- description
- parameters
|
Model |
VPH101 |
VPH102 |
VPH103 |
|

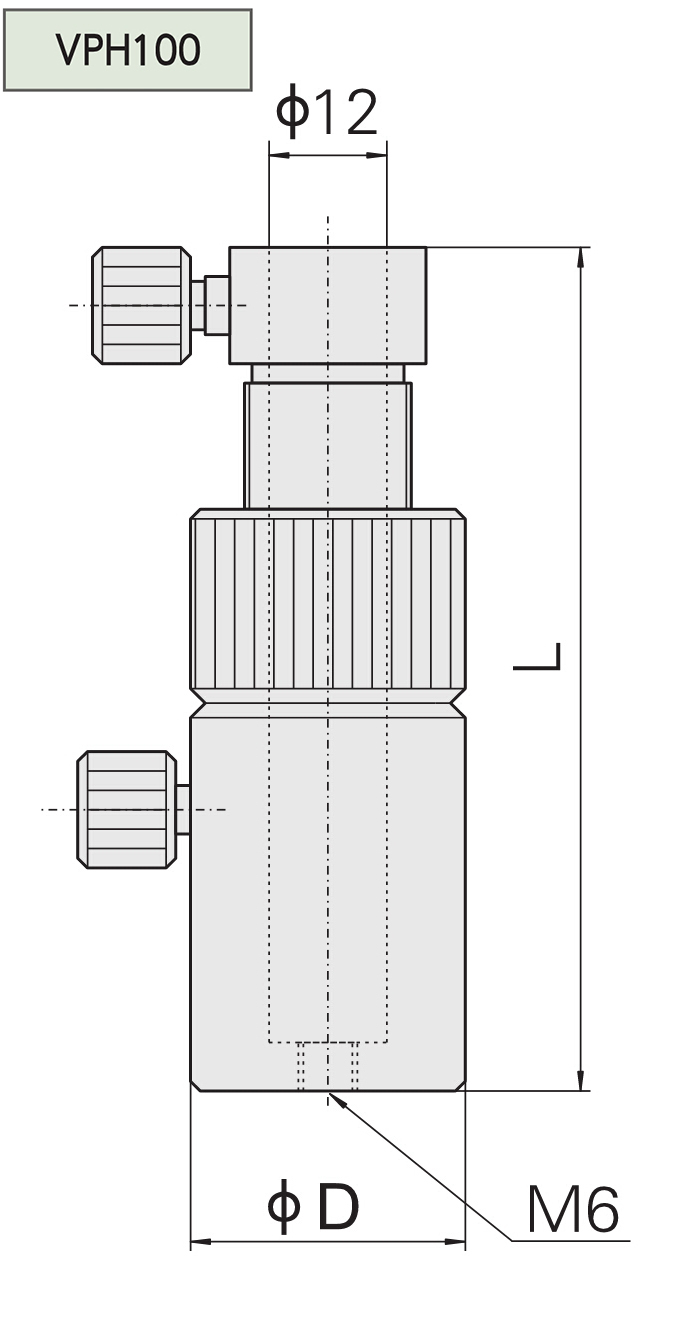

Adjusting of height L（mm） |
72 ~ 87 |
95 ~ 120 |
143 ~ 193 |
|
Diameter D（mm） |
Φ28 |
Φ28 |
Φ32 |
|
Fine adjustment H（mm） |
15 |
25 |
50 |
|
Weight（kg） |
0.1 |
0.12 |
0.5 |
