current location：Home>Products>Optics>Prisms

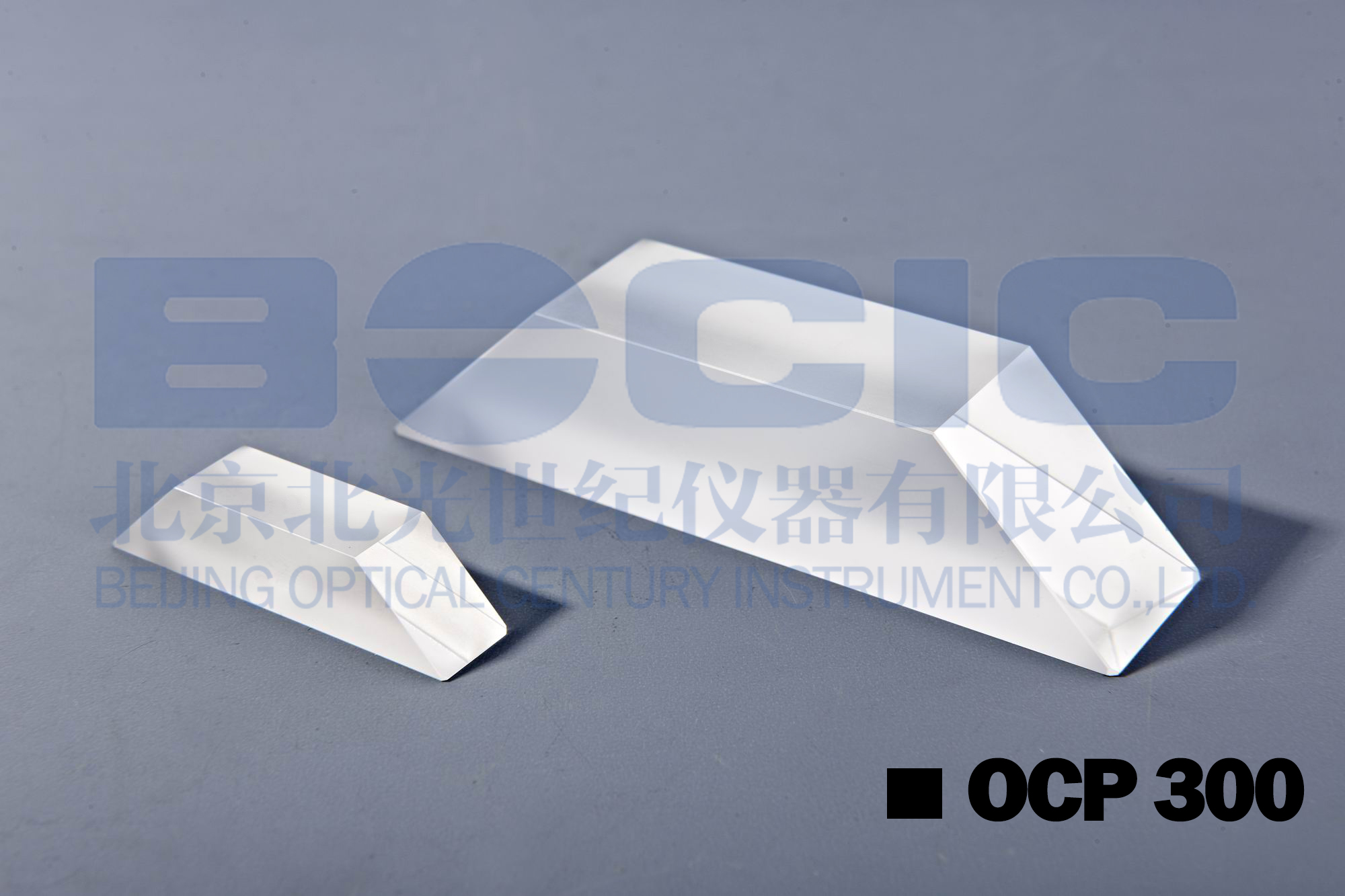

OCP300 series Dove prisms

    1. Material: K9 optical glass

    2. Size Tolerance: +0.0/-0.2mm

    3. Surface Figure: ＜ λ/2@632.8nm

    4. Surface Quality: 3 to 4

  • description
  • parameters

OCP300 series Dove prisms




1. Material: K9 optical glass

2. Size Tolerance: +0.0/-0.2mm

3. Surface Figure: ＜ λ/2@632.8nm

4. Surface Quality: 3 to 4

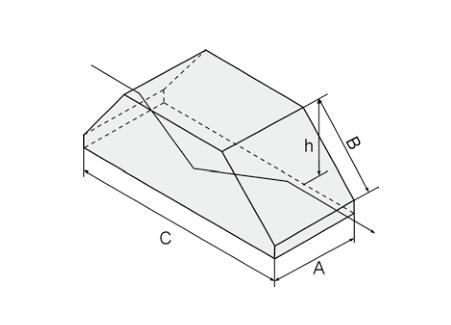

Model

Name

A(mm)

B(mm)

C(mm)

OCP301

Dove prism

10

14.14

42.28

OCP302

Dove prism

20

28.28

84.56
