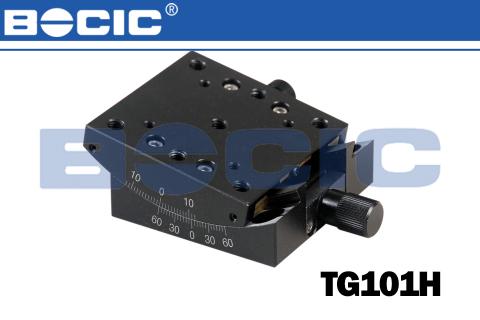

TG101H precision positioning stage
1.High quality worm gear pair
ensuresprecise and reliabletranslation.
2.Standard threaded holes on both top and
bottom of the stages allow secure mounting to optical tables, or additional
stages for multi-axes translation.
3. The stage can be paired with TG101,
allowing the two stages to share the same rotation center.
- description
- parameters
|
Model |
TG101H |
|
Table size （mm） |
65×65 |
|
Adjustment range |
±10o |
|
Minimum reading |
5＇ |
|
Graduation |
1o |
|
Axis height（mm） |
50 |
|
Loading capacity (kg) |
6 |
|
Weight （kg） |
0.6 |
