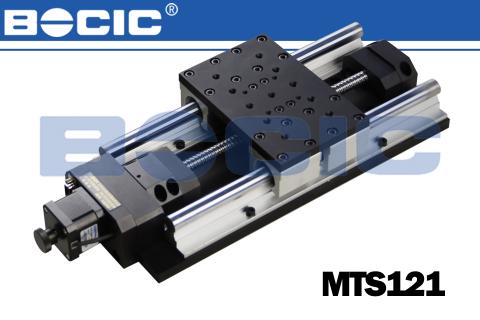

MTS120 series motorized translation stages
1.Actuated with high precisionball screw,linear
ball bearing and guides.
2.Long travel limit and large bearing capacity
3. Controller usesstandard RS232 interface
4. Zero position
photoelectric switch is included. Travel limit switches are located at both ends
of the stage for accurate positioning and protection.
- description
- parameters
|
Model |
MTS121 |
MTS122 |
MTS123 |
MTS124 |
|
Travel（mm） |
150 |
200 |
300 |
400 |
|
Table size (mm） |
90×150 |
|||
|
Guides |
Linear ball bearing guides |
|||
|
Screw pitch（mm） |
4 |
|||
|
Resolution（mm） |
0.00032 |
|||
|
Maximum speed (mm/s) |
20 |
40 |
||
|
Resetting positioning accuracy (mm） |
＜0.005 |
|||
|
Axial clearance (mm） |
＜0.02 |
|||
|
Stepper motor（1.8°） |
42 stepper motor |
|||
|
Maximum static torque (Ncm) |
40 |
50 |
||
|
Loading capacity(kg) |
20 |
|||
|
Weight（kg） |
3 |
3.3 |
3.8 |
4.2 |
|
Comment |
The product can be used in vacuum environment and increase dust cover，but you need to have it made to order. |
|||
